Electronics Segments

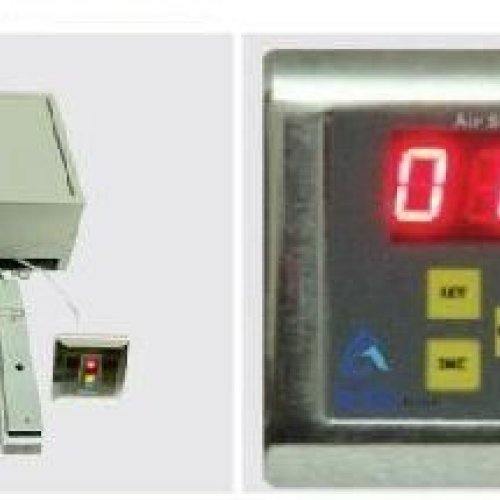

Our product is designed and manufactured considering long trouble-free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure The Air Shower system controls the sequential locking and release of the doors and controls the Blower. The two doors are interlocked such that two doors cannot be open at the same time, to prevent pressure losses and cross contamination. Our Air Shower interlocking system achieve this by preventing simultaneous access of door by ensuring that when one door for an Air Shower interlocking system is open then other door is closed, before opening of door.

• When any one of the Door is opened the display on the other doors will indicate
  “WAIT” & person access the door by pressing push button.
• All Doors are provided with EM Locks

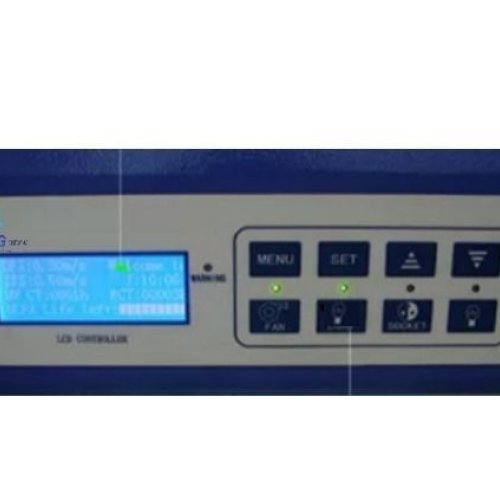

Biosafety Cabinet Controller

We are manufactures of electronic controller for Bio Safety Cabinet. Our product is designed and manufactured considering long trouble-free operation with easy service ability.

User Features:

• Advanced Micro-controller based.
• Real time clock IC with date/ time setting
• Menu with Setting / Operating Mode /
• Calibration / Admin
• UV Timer / Experiment Timer / Warm up Time / PP Time
• Operating mode Normal / Quick Start-up Maintenanc

Digital Magnehelic Gauge

The Magnehelic gauge is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems It also checks gas-air ratio controls and automatic valves, and monitors blood and respiratory pressures in medical care equipment. Differential Pressure Indicators are Digital Readout Magnahelic Gauges Suited for Application in Laminar Air Flow Cabinets, Clean Rooms, Biosafety Cabinets, AHU, Etc. Differential Pressure Indicators Are Part Replacement for The Analog Magnahelic Gauges & Are Easy to Use with Clear LCD Display. It Comes with Built in Sensor & Also A Buzzer Alarm with Acknowledgement Facility for Process Violation Alert.

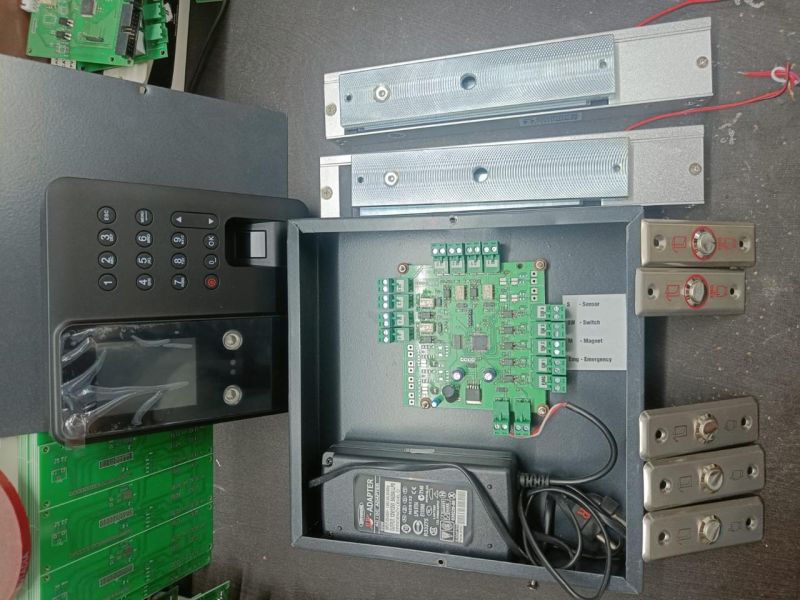

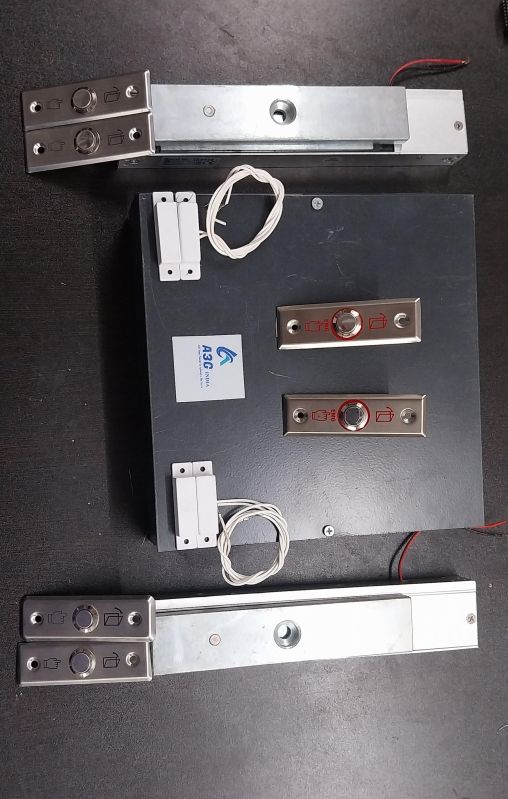

_{The Door Interlock System (DIS) prevents more than one door from opening at the same time, under normal conditions. The Door Interlock System is electrically operated using magnetic locks and magnetic door switches. Push buttons installed at the doors are for overriding the magnetic locks in the event of an emergency. Visual and audible alarms sound when a door is opened and will silence upon closing. The Door Interlock System can be used in many applications for environmental and safety control such as laboratories and clean rooms where airlocks are utilized, darkrooms, x-ray and other treatment rooms}

The Door Interlock System can be included as a kit containing a control panel with optional devices, such as: door magnetic locks, magnetic door switches and door emergency release push buttons mounted in stainless steel wall plates for a two, three or four door application. Control panels and push buttons are available in flush or surface models. The push buttons for a kit will be provided as flush or surface determined from the control panel selection.

Integrate multiple doors in the same system
Cascade feature for more than 8 doors Maximum up to 16 Doors

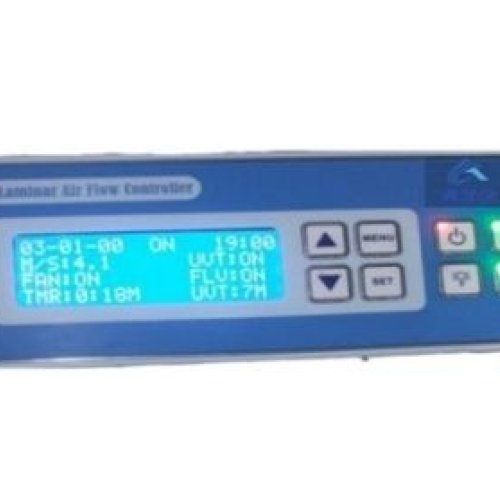

Laminar Air Flow Controllers

We are manufactures of Laminar Air Flow controller .Our product are designed and manufactured considering long trouble free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure

User Features:

• Advanced Micro-controller based
• 16×2 LCD Display
• Blower, UV, Lamp & Socket on/ off control through Hmi
• Opto isolated two digital reed inputs for sash window position
• UV Hour meter with RESET option.
• Blower speed controlling in m/s or fpm
• Sash sliding window UP/DOWN control
• Easy to installation& user friendly wiring

Technical Features:

• Microcontroller based design
• Emi/ Rfi tested design
• High quality electronic component
• OEN relay output
• Opto Isolation for inputs and outputs
• 230Vac / 110 Vac option available
